Create Professional Bathroom Floor Plans in Minutes

With Cedreo, it’s never been easier to create stunning bathroom layouts. Use its intuitive tools, customization options, and extensive library of fixtures to create new bathroom designs in just a few minutes.

The tight space of most bathrooms means it’s more important to create accurate layouts that ensure you make the best use of space. Use both 2D and 3D bathroom floor plans with dimensions and fixtures to anticipate problems and help clients visualize the final design. Floor plans allow clients to identify the place of the key elements in the room: bath, sinks, storage, toilets… and ensure the bathroom space matches their lifestyle.

Learn more about the Floor Plan Creator

2D Bathroom Floor Plans

2D bathroom blueprints show the space from above. This makes it easy to see the entire layout and dimensions, as well as the windows and door space around bathroom fixtures. Accurate 2D floor plans are important so it’s best to use a floor plan design tool like Cedreo.

Learn more about 2D Floor Plans

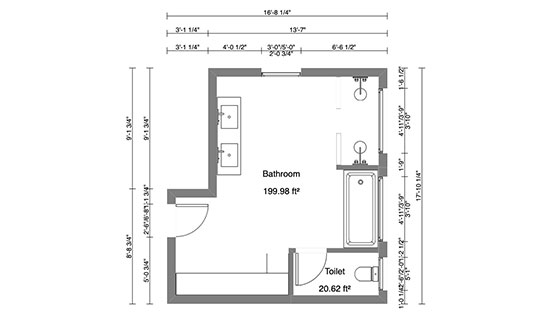

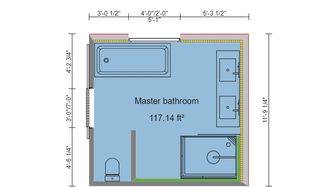

2D Bathroom Floor Plan

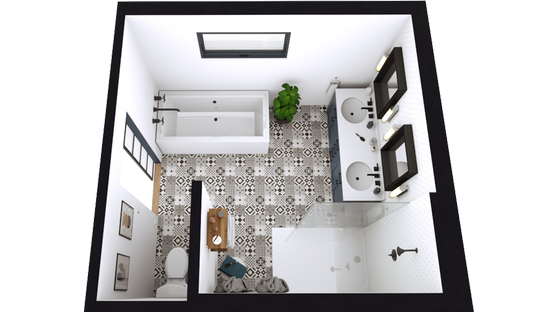

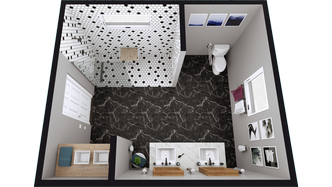

3D Bathroom Floor Plan

3D Bathroom Floor Plans

3D floor plans for bathrooms make it easy to visualize and test different layouts, finishes, and color schemes. And with the right design tool, you can see the bathroom from a variety of perspectives that will help you and your clients feel like you’re in the new bathroom before the remodeling project has even been started. They can validate the design of their new room much faster.

Learn more about 3D Floor Plans

Generate Photorealistic Bathroom Renderings

Elevate 3D bathroom floor plans to the next level with photorealistic 3D renderings that allow you to show clients exactly what their bathroom will look like. An on-the-ground virtual visualization will help clients envision themselves in the room and start their emotional connection to the space.

Learn more about 3D Renderings
Bathroom Rendered with Cedreo

6 Key Bathroom Layout Considerations

Designing a bathroom floor plan can be challenging. So here are a few key things you should keep in mind when planning a bathroom layout.

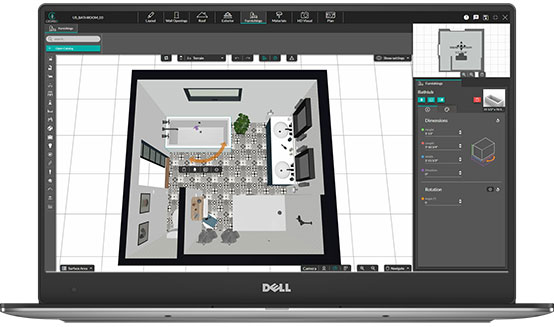

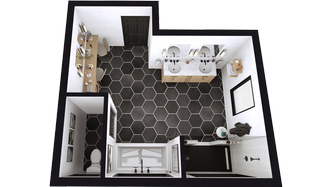

3D Bathroom Floor Plan created with Cedreo

Dry vs. Wet Zones

A popular design trend for larger bathrooms is to fully separate the bathroom’s wet and dry zones. A wet zone is an area that includes a shower and bathtub. The dry zone is everything else like the toilet, vanity, and changing area. Designing a wet zone that’s away from the flow of traffic helps keep people from getting their feet wet unnecessarily while keeping the dry zone cleaner.

Bathroom Rendered with Cedreo

Line of Sight

No one likes to open the bathroom door and be greeted with a prime view of the toilet. Avoid this by creating a bathroom floor plan that keeps the toilet out of the direct line of sight when the door is open. Try placing the toilet off to one side of the doorway or next to a vanity. You can even create a separate toilet compartment or use a piece of frosted privacy glass.

3D Bathroom Floor Plan

Included Fixtures

Think ahead to how your client will use their bathroom. Will two people need to use it at once? Should the toilet and/or shower be placed in a separate section of the bathroom to afford more privacy? Does the bathroom need a double sink? It’s also important to plan efficient locations for smaller fixtures like towel racks and toilet paper holders.

Bathroom Rendered with Cedreo

Windows and Privacy

Bathroom windows are both a blessing and a curse. They add natural light that helps the small space of a bathroom feel less claustrophobic, but they can make it harder to have your privacy. As a solution, try using skylights or transom windows where possible. You can also choose opaque window glass to help obscure the view and add a touch of style.

Bathroom Rendered with Cedreo

Storage

Bathrooms often need to store many things from linens and towels to bath products and makeup. Ensure your design includes plenty of storage options that don’t inhibit the flow of traffic and door openings.

2D Bathroom Floor Plan

Dimensions

Bathrooms can fit into surprisingly small spaces. Just 40 square feet is enough for a full bath that’s laid out correctly. When creating bathroom blueprints, take into consideration the dimensions of the fixtures and the required space around and above them.

Bathroom Floor Plan Examples

Cedreo’s floor plan software can create any type of bathroom floor plan, big or small. Here are a few examples

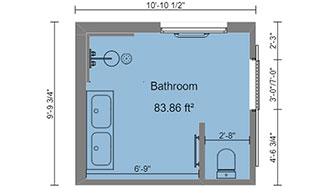

2D bathroom floor plan

2D bathroom floor plan

3D Floor Plan of a Single Room

3D bathroom floor plan

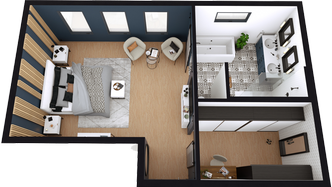

Master bathroom floor plan

Master bathroom floor plan

small bathroom floor plan

Small bathroom floor plan

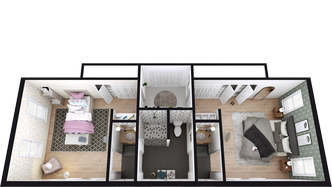

Jack and jill bathroom floor plan

Jack and jill bathroom floor plan

Powder room floor plan

Powder room floor plan

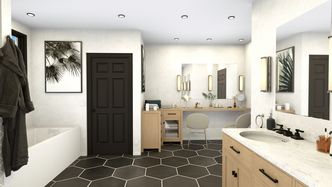

3D bathroom rendering

3D bathroom rendering

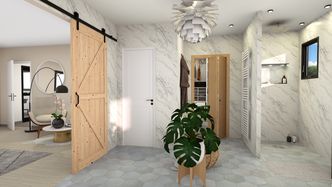

3D master bathroom rendering

3D master bathroom rendering

Bathroom Floor Plan FAQs

What is the Best Layout for a Bathroom?

A lot depends on the space you have to work with. One of the best layouts for small spaces is the classic “three-in-a-row” with the tub/shower, toilet, and sink next to each other along one wall.

How Much Room Should You Allow Per Person in a Bathroom?

If the bathroom will be shared by two people during the morning rush hour, plan for a double sink with at least 30 inches of width per person. It’s also a good idea to allow pathways that are at least 36 inches wide for optimum ease of movement.

How Much Space is Needed Between a Toilet and Shower?

If the toilet is next to the shower, it’s best to leave at least 18 inches from the toilet’s centerline to the edge of the shower. For toilets that face the shower, try to leave at least 30 inches of space in front of the toilet.

Why is the Toilet Always Placed Next to the Shower?

Fixtures are often placed along the same wall to reduce plumbing costs since all the piping is in one wall.
